LEUCO Cutter Heads

DIAMAX SmartJointer Airface Jointing 80mm Cutterhead With 35 Degree Sheer

From $1,788.68 CAD select a size below for exact price
Sale Sold out
This product may experience extended delivery times.
  • Specifications
  • Details
  • Description

General Product Details

Applications
All Purpose, Suited For Removal < 2.5mm
Cutting Edge
35 Degree Face Shear Angle, Resharpening area 1.5mm, Symmetrical Cutting Edge Format
Machine Types
Single Sided Edgebander, Double Sided Edgebander
Material Types
Raw Particleboard, Raw MDF, Laminate Particleboard, Laminate MDF
Select a new size using the dropdown above to see the size details

Specifications for SKU:

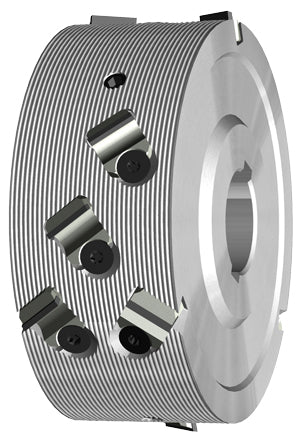

The airFace cutterhead is ideally suited for customers who attach importance to a low noise level and/or who want to be independent of sharpening saving you time and money. Provided with a set of suitable replacement segments, they will be able to re-equip their tools at any time. These dynamic cutterheads are suitable for jump-milling units for very quiet jointing of solid wood and wood-based panels with and without coating, focusing particularly on the reduction of unbalance and noise. The aluminum body with airFace surface and exchangeable stainless steel diamond cutting edges with large sheer angle provide a reduced power consumption, excellent cutting quality, and corrosion protection of the entire tool.

Any items needed for replacing parts, such as DP replacement segments, torque wrenches and screws, are also available from LEUCO.
