LEUCO Shank-Type Cutters

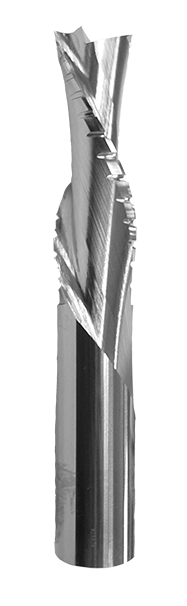

Solid Tungsten Carbide Downcut Spiral with Chipbreaker Finish

From $147.46 CAD select a size below for exact price
Sale Sold out
This product may experience extended delivery times.
  • Specifications
  • Details
  • Description

General Product Details

Applications
Cutting Openings, Cutting Contours, Ramp In - Traveling Plunge, Cutting On Pods, Nested Base Cutting, Panel Upper Surface Finish, Deep - High Load Cutting, Rough Cut w/Finish Cut Quality
Cutting Edge
Solid Carbide (Industrial Quality)
Machine Types
CNC Router, Point To Point, Machining Center, 5 Axis Machines
Material Types
Solid Wood, Combo Wood & Panel Materials, Plywood With Veneer, Raw Particleboard, Raw MDF, Laminate Particleboard, Laminate MDF, Melamine Laminate Particleboard, Melamine Laminate MDF
Select a new size using the dropdown above to see the size details

Specifications for SKU:

Downcut Chipbreakers are best suited for sizing, jointing, grooving and dividing in plywood, raw or laminated materials for cutting of openings and contours and traveling plunge cuts using Z and X or Y axis. The chipbreaker finisher design applies a lower cutting pressure when cutting plywood to create a better cut quality. These spirals are solid carbide, and have a endmill end point type. They provide an excellent finish on the top of the material and a poor finish on the bottom of the material. High rates of feed and best quality thanks to helical geometry.
