LEUCO Shank-Type Cutters

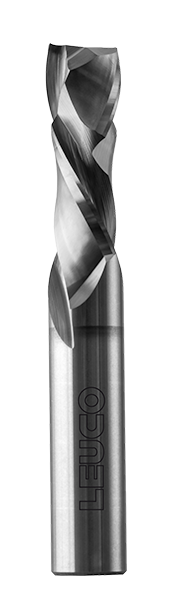

Two Flute Solid Tungsten Carbide Compression Spiral

From $100.79 CAD select a size below for exact price
Sale Sold out
This product may experience extended delivery times.
  • Specifications
  • Details
  • Description

General Product Details

Applications
Cutting Openings, Cutting Contours, Ramp In - Traveling Plunge, Cutting On Pods, Panel Upper Surface Finish, Panel Lower Surface Finish, Finish Cutting
Cutting Edge
Solid Carbide (Industrial Quality)
Machine Types
CNC Router, Point To Point, Machining Center, 5 Axis Machines
Material Types
Solid Wood, Combo Wood & Panel Materials, Plywood With Veneer, Raw Particleboard, Raw MDF, Laminate Particleboard, Laminate MDF, Melamine Laminate Particleboard, Melamine Laminate MDF
Select a new size using the dropdown above to see the size details

Specifications for SKU:

These two flute solid carbide Compression Spirals are best suited for CNC Routers for sizing, jointing, and dividing in raw and laminated panel materials, for cutting of openings and contours or traveling plunge cuts using Z and X or Y axis. The LEUCO compression spirals provide and excellent finish on top and bottom of the material with high rates of feed and best quality thanks for helical geometry. The design features n max 30,000 min – 1 with an endmill end point type. Improve your performance by using LEUCO precision clamping systems.
