LEUCO Shank-Type Cutters

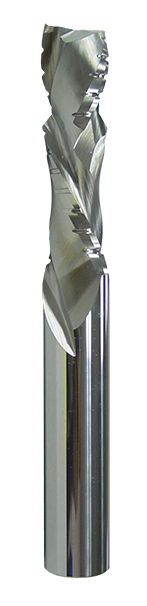

Standard Mortise Compression Two Flute Tungsten Carbide Spiral

From $104.30 CAD select a size below for exact price
Sale Sold out
This product may experience extended delivery times.
  • Specifications
  • Details
  • Description

General Product Details

Applications
Cutting Openings, Cutting Contours, Ramp In - Traveling Plunge, Nested Base Cutting, Panel Upper Surface Finish, Panel Lower Surface Finish, Cutting Shallow Groves, Finish Cutting
Cutting Edge
Solid Carbide (Industrial Quality)
Machine Types
CNC Router, Point To Point, Machining Center, 5 Axis Machines
Material Types
Solid Wood, Combo Wood & Panel Materials, Plywood With Veneer, Raw Particleboard, Raw MDF, Laminate Particleboard, Laminate MDF, Melamine Laminate Particleboard, Melamine Laminate MDF
Select a new size using the dropdown above to see the size details

Specifications for SKU:

These two flute Mortise Compression Spirals are best suited for sizing, jointing, grooving, and dividing in raw and laminated panel materials for cutting of openings and contours and traveling plunge cuts using Z and X or Y axis. These spirals design bring a short upshear for grooving applications, are solid carbide, and have an endmill end point type. They provide an excellent finish on both top and bottom of the material and high rates of feed and best quality thanks to helical geometry.
